Arc Flash Jacket, Trousers, Gloves, Balaclava and Visor Bundle
The Arc Flash Jacket, Trousers, Gloves, Balaclava and Visor Bundle includes a high-vis jacket and pair of trousers, full face protection in the form of a balaclava and a visor, and a pair of protective arc flash gloves. This bundle is ideal for electricians and engineers who need full body protection from the hazards related to electrical arcs.
Please click here to see sizing information.
What's Included?
With your purchase you will receive:
Why Buy the Arc Flash Bundle?
- Certified: All the included products are certified as offering reliable protection from electrical arcs
- Money Saving: The five products are cheaper when purchased together than they would be individually
- Multi-Hazard: As well as offering arc flash protection the components each have other certifications, including flame resistance, anti-static protection and cut resistance
- Functional: The jacket features a radio loop, the trousers feature knee pad pockets and the gloves have excellent wet and dry grip for optimum functionality
- Comfortable: The trousers are elasticated, the balaclava hood has a high cotton content, and the jacket features hook and loop cuffs to ensure you are comfortable at work
- Cumulative: Arc flash rating increases when more than one arc flash certified garment is worn at the same time
 |  |
- Multi-hazard flame resistant jacket
- ARC2 rating arc flash protection
- Highly visible in low light conditions
- Offers welding and chemical protection
| - Flame-resistant multi-hazard trousers
- ARC2 rating arc flash protection
- Welding protection and chemically resistant
- Triple-stitched seams for durability
|
 |  |
- Face and neck protection from electrical arcs
- ARC2 rating arc flash protection
- Features flame resistant and anti-static properties
- High cotton content for maximum comfort
| - Class 2 and VLT Class 1 arc flash visor
- Optimal arc flash protection with GS-ET-29
- Features a chin protector and slot for hard hats
- Can be put in stand-off position for intermittent use
|
 |
- Cut-resistant work gloves with arc flash protection
- Excellent dry and wet grip
- Great oil, grease, glue and chemical resistance
- Dexterity, touch and elasticity similar to natural rubber
|
The Arc Flash Kit in Depth
The Portwest MV25 Modaflame High-Vis Arc Flash Jacket
The jacket offers the ultimate in protection from electric arcs, making it ideal for workers in multi-hazard environments such as energy testing technicians, industrial electricians and road workers. The jacket also qualifies as highly visible, and offers protection against molten metal, chemical splashes, electrostatic discharge and radiant, convective and contact heat.
The Portwest MV26 Modaflame High-Vis Arc Flash Trousers
The trousers are designed to offer protection against arc flashes, as well as other industrial hazards such as electrostatic discharge, molten metal and chemical splashes. The trousers are both durable and comfortable, with triple-stitched seams, knee pad pockets and an elasticated waist for freedom of movement.

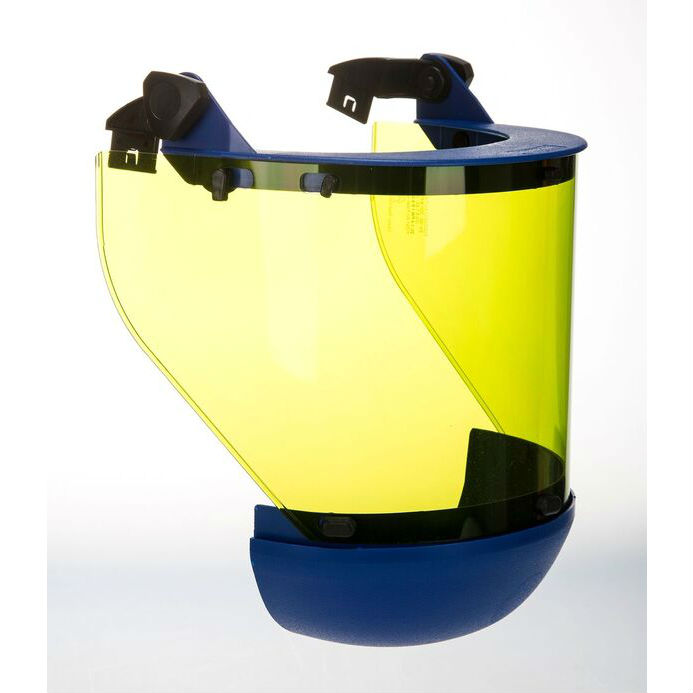

The Portwest Class 2 Arc Flash Visor
The visor is a Class 2 and VLT Class 2 visor providing optimal arc flash protection according to GS-ET-29. It has been designed to maximise colour perception and visible light transmittance, while also protecting against UV light and reducing fogging. As it can be worn with hard hats and in a stand-off position, it is suitable for providing reliable protection in a wide range of industries.

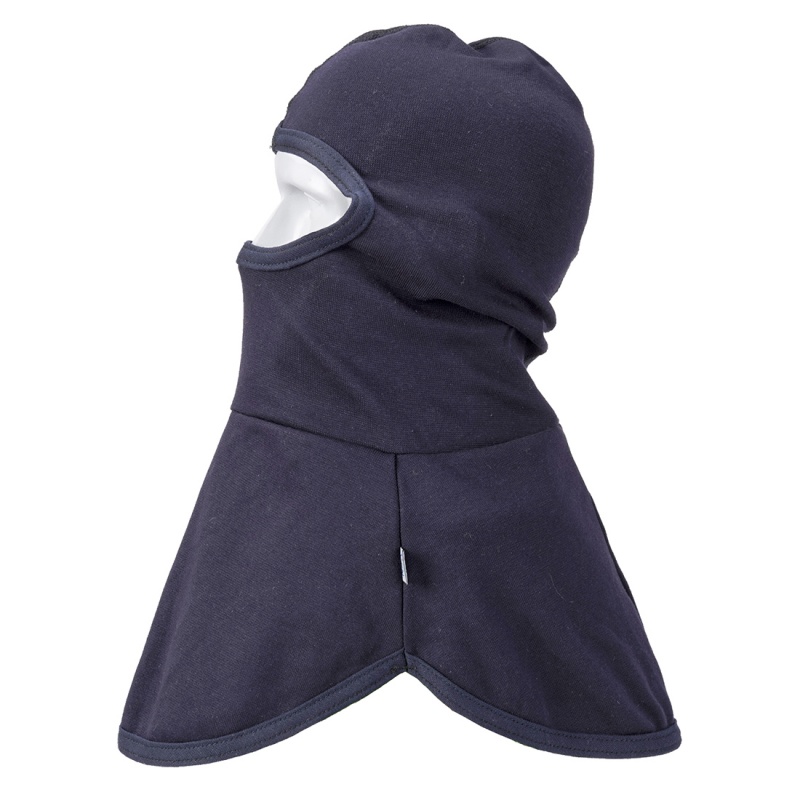

The Portwest FR Anti-Static Arc Flash Balaclava Hood
The balaclava hood will reliably protect the sensitive areas of your face and neck from the dangers associated with an electrical arc. The hood also possesses flame resistant and anti-static properties, and the high cotton content of the fabric makes it exceptionally comfortable to wear.

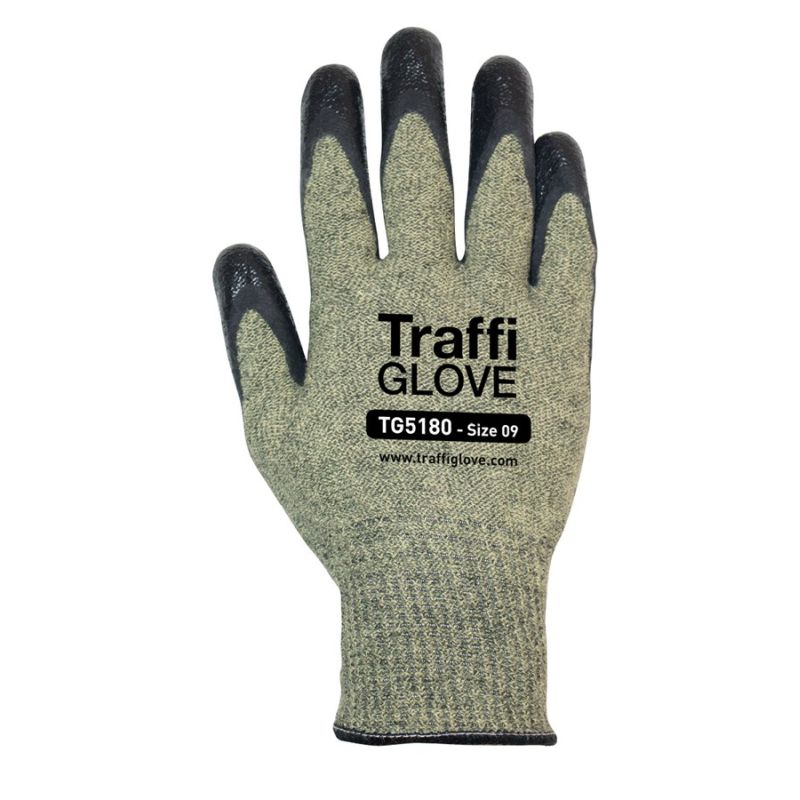

The Traffiglove TG51980 Arc Flash Work Gloves
The glovesare specially designed to protect the wearer from arc flash. With an aramid-based liner and an elastic neoprene palm coating, they provide superb cut and heat resistance as well.
Why Should I Trust the Arc Flash Bundle?
All of the products in the Arc Flash bundle have been certified to a range of different standards that ensure protection. They can be found below:
The Portwest MV25 Modaflame High-Vis Arc Flash Jacket
- AS/NZS 1906.4:2010
- ELIM TESTING IN PROGRESS
- EN 1149 -5
- EN 13034 Type PB [6]
- EN ISO 11612 A1+A2, B2, C1, F1
- EN ISO 11611 Class 1 A1+A2
- IEC 61482-2 IEC 61482-1-2 Class 1
- EN ISO 20471 Class 2
- ASTM F1959/F1959M-12 ATPV=8.4 Cal/CM2 (HAF=75.8%)
The Portwest MV26 Modaflame High-Vis Arc Flash Trousers
- AS/NZS 1906.4:2010
- ELIM TESTING IN PROGRESS
- EN 1149 -5
- EN 13034 Type PB [6]
- EN ISO 11612 A1+A2, B2, C1, F1
- EN ISO 11611 Class 1 A1+A2
- IEC 61482-2 IEC 61482-1-2 Class 1
- EN ISO 20471 Class 1
- ASTM F1959/F1959M-12 ATPV=8.4 Cal/CM2 (HAF=75.8%)
The Portwest Class 2 Arc Flash Visor
- GS-ET-29 Class 2 8-2-1
- ASTM F2178 12 cal / CM2
- EN 166 1 B 8 3
- EN 170 2C-1.4
- NFPA 70E PPE Category
The Portwest FR Anti-Static Arc Flash Balaclava Hood
- ELIM TESTING IN PROGRESS
- EN 1149 -5
- EN ISO 11612 A1, B1, C1, F1
- IEC 61482-2 IEC 61482-1-2 Class 1
- ASTM F1959/F1959M-12 ATPV=16 Cal/CM2 (HAF=86%)
The Traffiglove TG51980 Arc Flash Work Gloves
- EN 388:2003 Rating: 3543
- EN 407 Rating: 42322
- EN 420
- ASTM F1959/F1959M-12 ATPV 8.6cal/cm².

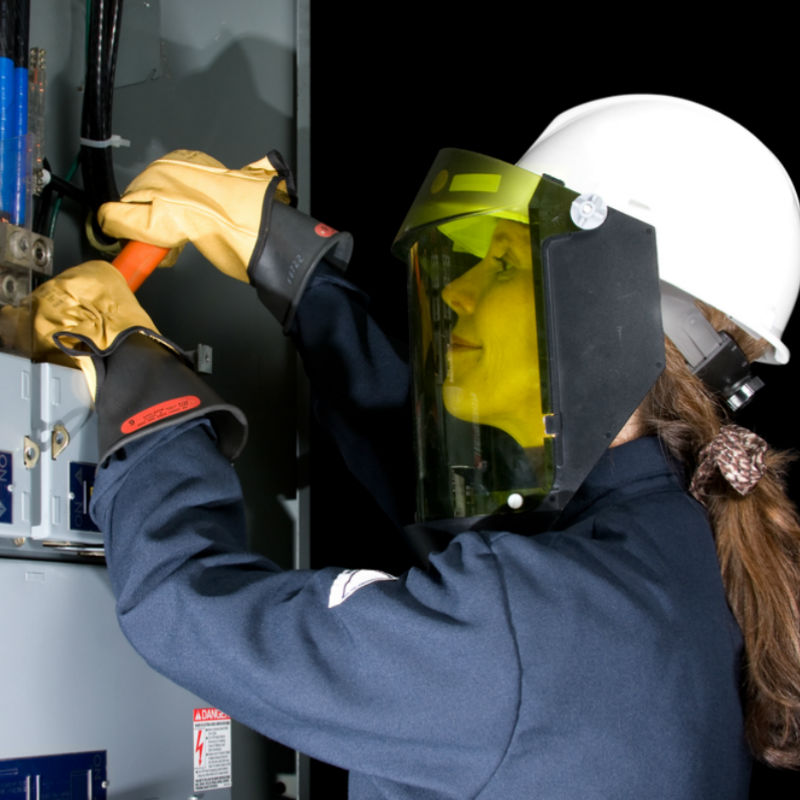

Arc flashes are a hazard in a wide range of industries
Is Any Further Information Available On These Standards?
If you would like to read more about these standards, why not have a look at our blog on Arc Flash Protection: What Do I Need To Know?
Which Sizes Do I Need?
Before purchase we recommend that you find the correct size for you. You can find your correct size by following the guidelines below. Once you have found your correct size, please select the drop-down menu at the top of the page.
Portwest MV25 Arc Flash Jacket
To purchase the correct sized jacket for you, you can measure the circumference of your chest, and match to the sizing guide below. Once this has been completed, you can choose your size and colour by clicking on the drop down menu at the top of the page.
| Size | Chest Measurement (Inches) |
| Small | 36 - 38" |
| Medium | 39 - 41" |
| Large | 42 - 44" |
| Extra Large | 46 - 48" |
| XX-Large | 49 - 52" |
| XXX-Large | 54 - 55" |
Portwest MV36 Modaflame Flame-Resistant Trousers
To find the correct size for you please measure yourself around the waist as illustrated in the image below, then find the corresponding size with reference to the table. Next please select this size from the drop down menu at the top of the page.
| Size | Waist Measurement (cm) |
| Small | 76 - 80cm |
| Medium | 84 - 88cm |
| Large | 92 - 96cm |
| Extra Large | 100 - 104cm |
| XX-Large | 108 - 112cm |
The trousers are available in two fits, regular and tall.
| Fit | Leg Length (cm) |
| Regular | 79cm |
| Tall | 84cm |
The Traffiglove TG51980 Arc Flash Work Gloves
The gloves are available in six sizes that should suit the hands of most users. Please measure the circumference of your hand around the knuckles (excluding the thumb) with your hand open and your fingers together, and the length of your hand from the tip of your middle finger to your wrist.
| Size | Circumference (mm) | Length (mm) |
| Size 6 | 152mm | 160mm |
| Size 7 | 178mm | 171mm |
| Size 8 | 203mm | 182mm |
| Size 9 | 229mm | 192mm |
| Size 10 | 254mm | 204mm |
The Portwest FR Anti-Static Arc Flash Balaclava Hood and the The Portwest Class 2 Arc Flash Visor
Both the Portwest Hood and Portwest Visor are suitable for most head sizes. The balaclava is elastic and will stretch to accommodate your head shape.
Documentation for the Portwest Jacket
| Instructions for Use |
 |
Conformity Statement for the Portwest Trousers
| Declaration of Conformity |
 |
Conformity Statement for the Portwest Balaclava
| Declaration of Conformity |
|
Documentation for the Arc Flash Visor
| Conformity Statement | Examination Certificate | Data Sheet |
| | |
Documentation for the Traffiglove Arc Flash Work Gloves
| Conformity Statement | Instructions for Use |
| |
